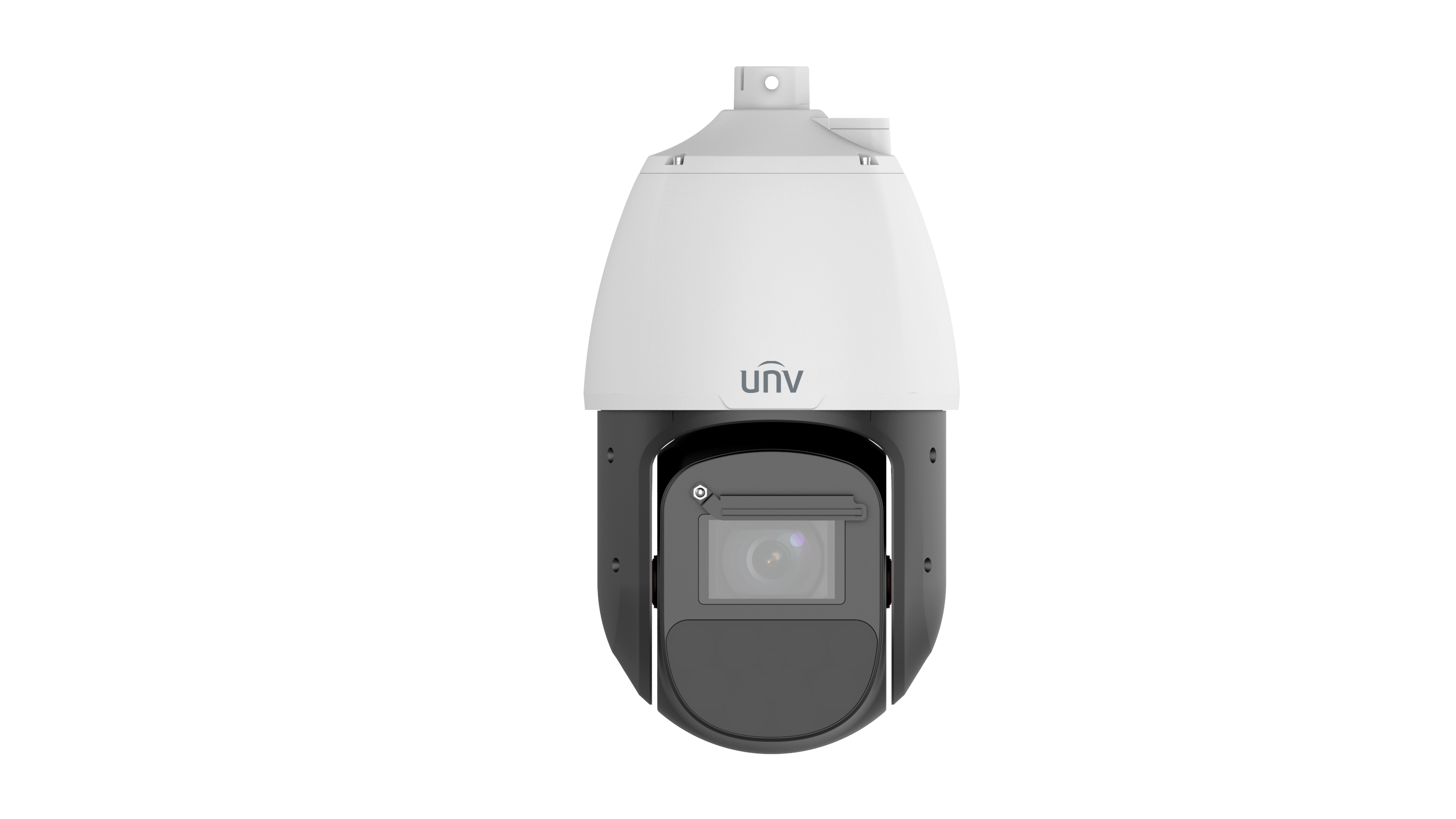

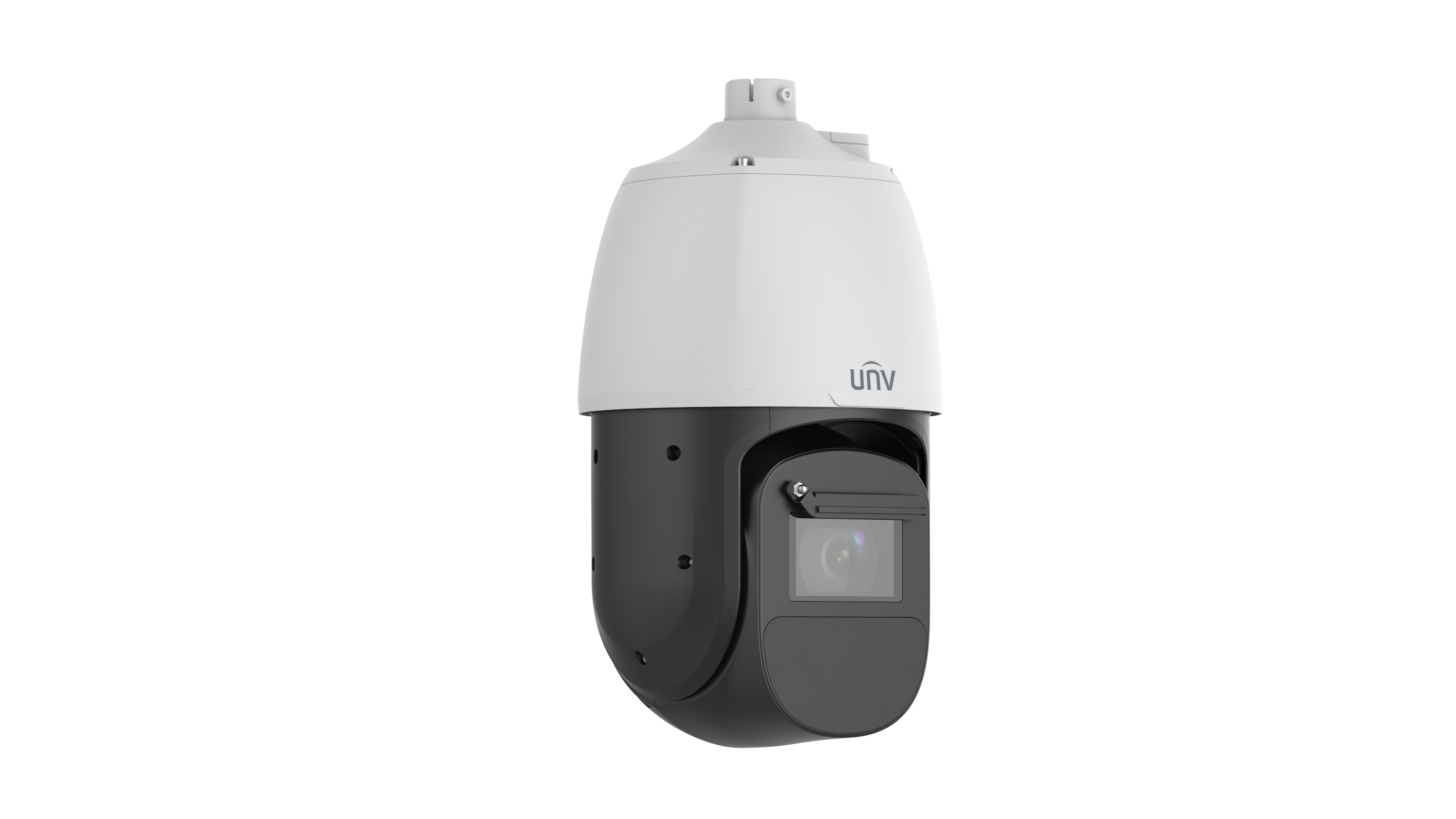

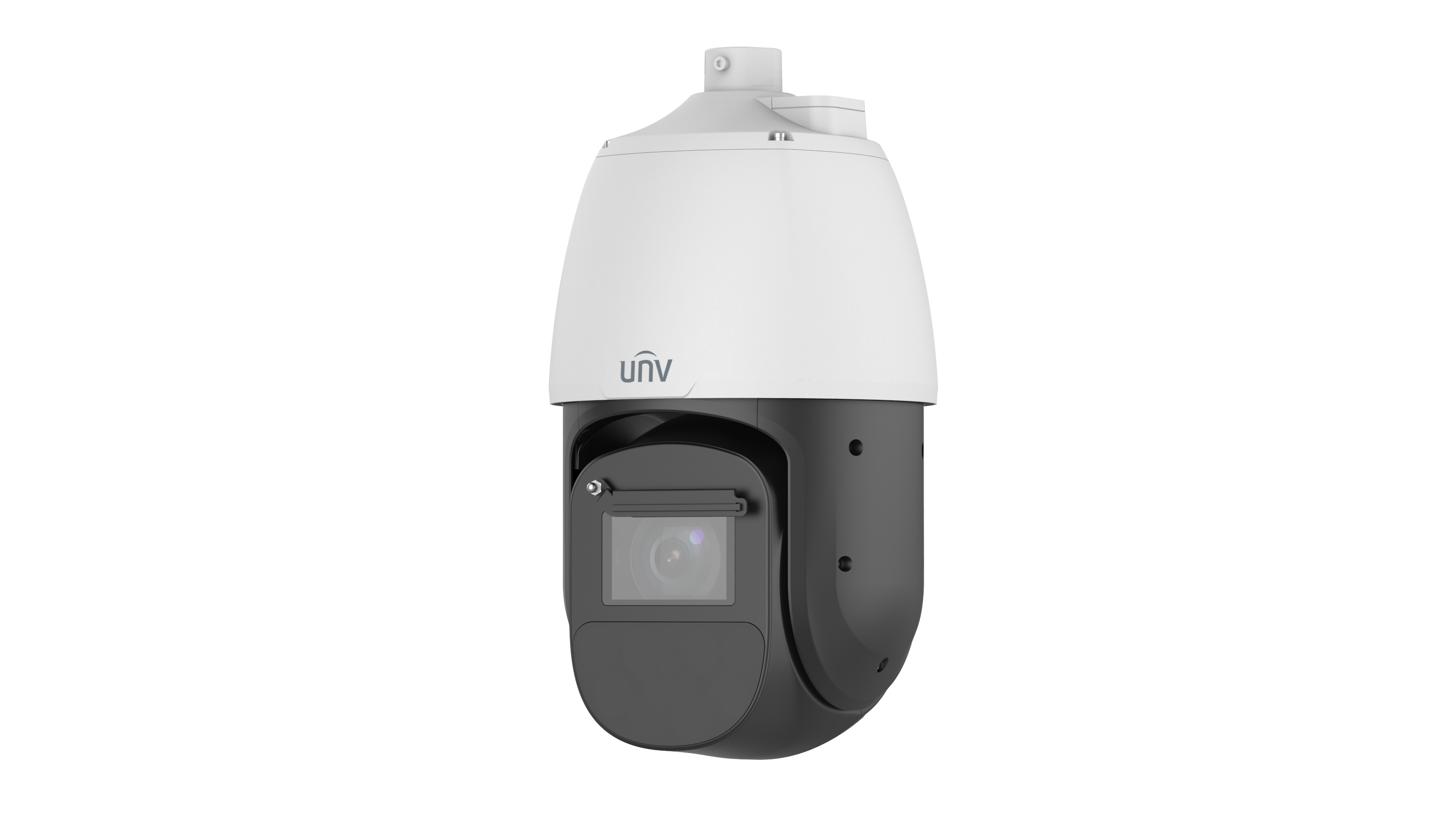

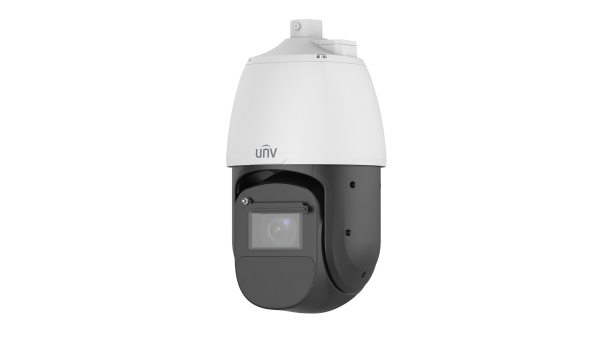

IPC6824EL-X42-W-VH1
4MP 42X LightHunter Laser Network PTZ Camera
• 2688 x 1520@60 fps in the main stream
• 42X optical zoom
• Smart intrusion prevention, supports false alarm filtering, including cross Line, intrusion, enter area, leave area detection
• supports front-end , supports blocklist and allowlist comparison
• People counting, supports people flow counting and crowd density monitoring
• Multi-target detection, supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis
• Support optical defog, Self-adaptive defog
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• IR illumination: 500 m (1640 ft) distance, proportional to optical zoom of camera module
• Gyroscope stabilization for stable picture
• Support wiper
• Power supply, AC 24 V ±25%, DC 24 V ±25%, PoE
• Alarm 7 in and 2 out, Audio 1 in and 1 out
• IP67 ingress protection
Specification

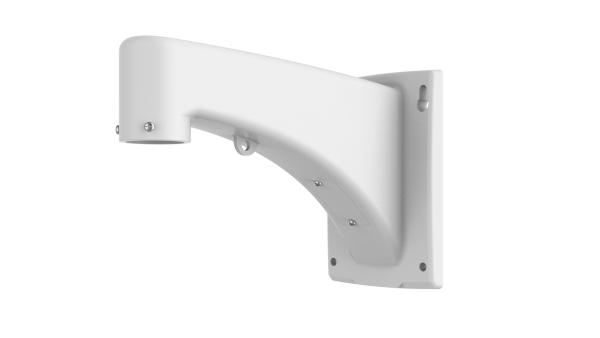

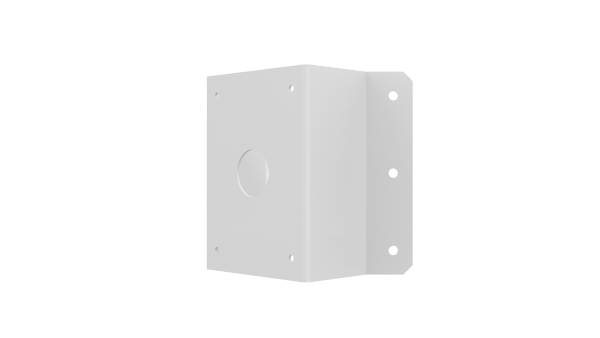

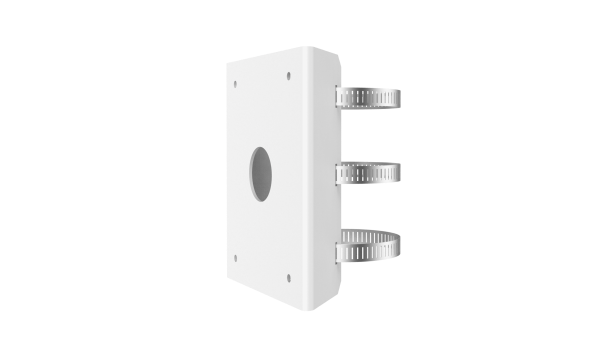

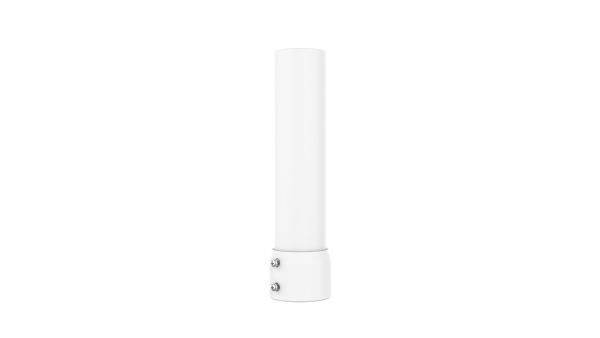

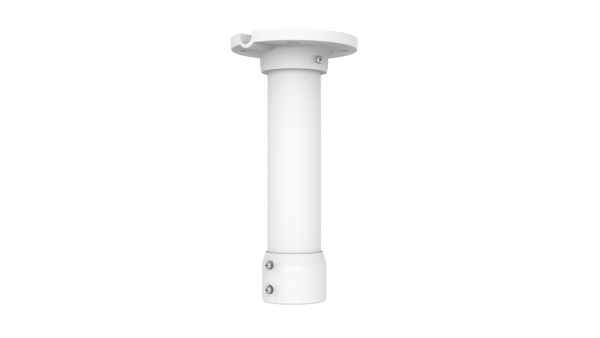

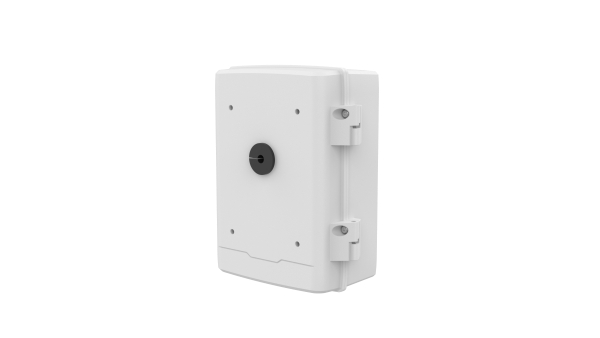

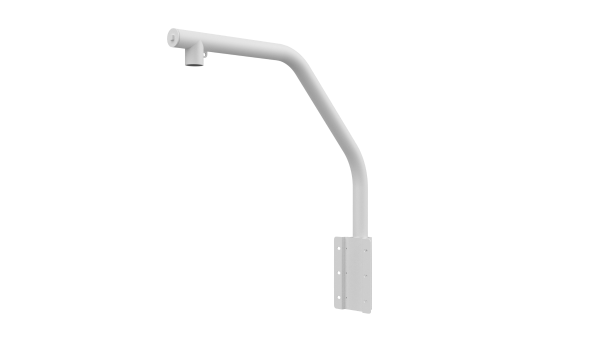

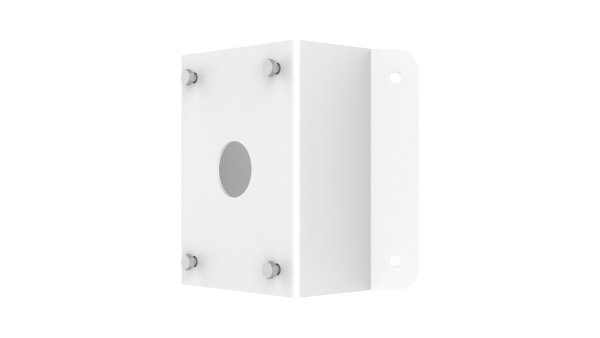

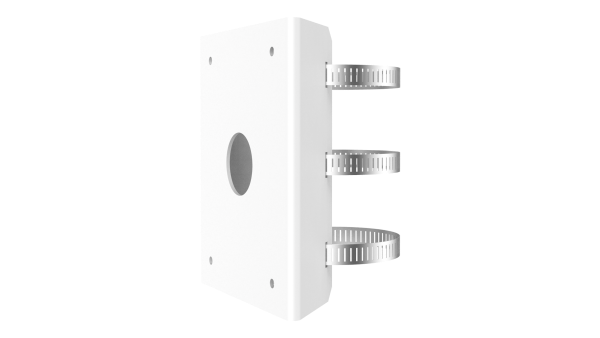

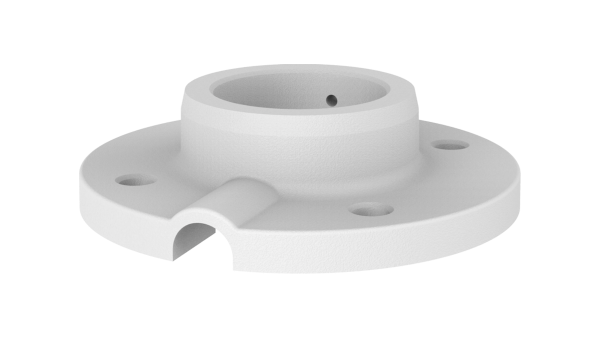

Accessories
Download
How to buy
 IPC6824EL-X42-W-VH1
Camera
Sensor1/1.8" CMOS
Min. IlluminationColour: 0.0003 Lux (F1.2, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
S/N>56 dB
Lens
Focal Length6.0~252mm
Optical Zoom42X
Digital Zoom16X
IrisF1.2 to F4.6
Field of View (H)59.47° ~ 2.20°
Field of View (V)35.62° ~ 1.24°
Field of View (D)73.15° ~ 2.60°
DORI
DORI Distance (Detect)107.2 m ~ 3330.6 m (351.8 ft ~ 10927.2 ft)
DORI Distance (Observe)42.9 m ~ 1332.2 m (140.7 ft ~ 4370.9 ft)
DORI Distance (Recognize)21.4 m ~ 666.1 m (70.4 ft ~ 2185.4 ft)
DORI Distance (Identify)10.7 m ~ 333.1 m (35.2 ft ~ 1092.7 ft)
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 4MP (2688*1520), Max 60fps
Sub Stream: 2MP (1920*1080), Max 60fps
Third Stream: D1 (720*576), Max 60fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple streams
Privacy Mask24 areas, up to 8 areas per scene
OSDUp to 10 OSDs
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Intelligent
Auto TrackingSupport, target filtering: human, non-motor vehicle and vehicle
Multi-target DetectionSupport
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport people flow counting and crowd density monitoring
PTZ
Route Patrol16 patrols, up to 32 actions for each patrol
Recorded Patrol16 patrols, up to 128 actions for each patrol
Number of Presets1024
Preset Image FreezeSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Patrol Stay Time15 s to 1800 s
Home PositionSupport
Pan Range360° (endless)
Pan Speed0.1°/s ~ 180°/s
Tilt Range–15° ~ 90° (auto flip)
Tilt Speed0.1°/s ~ 180°/s
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°
HLCSupport
BLCSupport
DefogDigital defog, Optical defog
EISSupport
Image StabilizationEIS (Gyroscope)
Interface
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O7/2
Serial Port1 * RS485
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output1 BNC (for debugging)
Illuminator
Illumination Distance (IR)500m
IR On/Off ControlAuto/Manual
Wavelength850 nm
Certification
EMCCE-EMC (EN 55032: 2015+ A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+ A: 2019; EN 55035: 2017+ A11: 2020)
SafetyCE LVD (EN IEC 62368-1: 2020+ A11: 2020)
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerAC24V ± 25%, DC24V ± 25%, PoE (IEEE802.3bt)
Power ConsumptionMax 67 W
Power InterfaceWires with cold-pressed terminal
DimensionsØ 226.7 x 440.3 mm (Ø 8.93" x 17.33") (Ø x H)
Weight6.9 kg (15.21 lb)
Working Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
HeaterSupport
