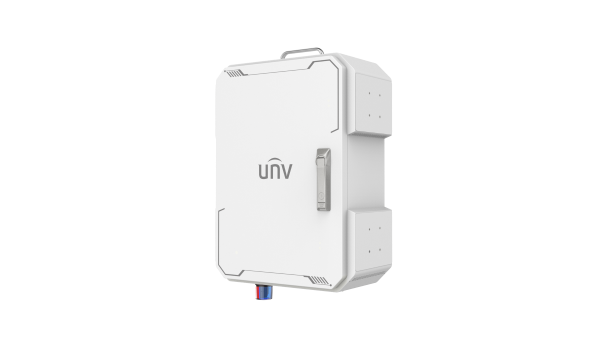

| | SMBOX02 |
| Power Input |
| Input Type | DC 10.8 V to DC 14.4 V, 12A |
| Input Port | 3-pin Connector |
| Power Output |
| Socket | N/A |
| DC 12V | 1-ch 2.5A, DC5521, Used for powering the router |
| DC 48V | DC 10.8 ~ 14.4V to DC 48V, 2.5A, 2 Pin Phoenix terminal |
| Dedicated Power Interface (Pre-Wired Internal Cabling) |
| Router Power Interface | DC12V, 2.5A |
| Warning Light Power Interface | DC12V, 2.5A |
| Function |
| System Functional Description | Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis |
| Power Lightning Protector |
| Maximum discharge current | 40 kA |
| Rated discharge current | 20 kA |
| Response time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
| General |
| Surge Protection | 6 kV |
| Working Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Working Humidity | ≤ 90% RH (non condensing) |
| Weight (Without Camera) | ≤ 14 kg (30.86 lb) |
| Dimensions | 650 (H) × 424 (W) × 230 (D) mm |
| Slot dimensions | The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 3 LAN ports. |
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
| Certification | CE-EMC, FCC |
| Consumption |
| No-load power consumption | At ambient temperature of 25°C: 4.6 W (No HDD Heating, No Fan, No Alarm Light) |
| Full-load power consumption | At ambient temperature of 25°C: 12.6 W (Fan, Alarm Light) |
| Adaptable Mounting Bracket |
| Left side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Right side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Bottom | Up to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ) |
| Top | Support the installation of an IP speaker, no mounting bracket required. |
