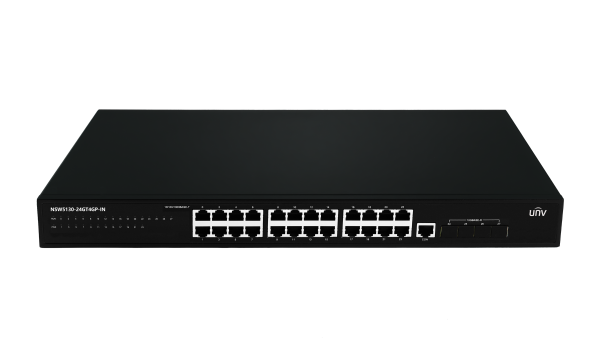

NSW5130-24GT4GP-IN
24GE Ethernet Switch
• Flexible Gigabit access. With flexible 8/24/48 Gigabit interface access, NSW5130 Series is compatible with non-multiplexed SFP interfaces to enable high density Gigabit access and protect users’ investment.
• Multiple services. NSW5130 Series supports multicast protocols such as IGMP, IGMP Snooping , FRRP (fast ring network recovery) protocol and FLRP (fast link recovery protocol).
• Sound security control policy. NSW5130 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface.
• Rich QoS policy. NSW5130 Series supports traffic identification on interfaces. It provides multiple stream classifications based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN.
• Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW5130 Series provides CLI command lines and a Web management interface.
Specification
Download
How to buy
 NSW5130-24GT4GP-IN
Hardware Specification
Dimensions (W×D×H)440×208×44
Ports Type24*10/100/1000Mbps RJ45 port,
4*1000Mbps SFP port
Switching capacity56Gbps
Forwarding performance41.66Mpps
Cooling Fans0
Operating Temperature0℃ to 45℃
Operating Humidity5% to 95%, non-condensing
IndicatorPWR, RUN, LINK/ACT
Power SupplyAC: 100 to 240V, 50/60Hz
Weight2.5kg
Max.Power22W
Software Specification
MACSupport static, dynamic, black hole MAC entries
Support source MAC address filtering
MaintenanceSupport real-time temperature detection and alarm
Support SNMP, CLI, Web management,
Support local and remote output of system logs, operation logs, debugging information
SecuritySupport authentication modes based on MAC, 802.1x, and Portal; support local and support local and centralized authentication
Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection
Support port isolation, port security
Support broadcast storm suppression
Support SSH2.0
QoSSupport 8 priority queues per port
Support traffic classification based on 802.1p/DSCP/TOS
Support speed limit on ports and streams
Support SP, WRR, SP + WRR queue scheduling
EthernetSupport port aggregation, port mirroring, RSPAN, port isolation, port traffic identification
VLANSupport 4K 802.1Q VLAN
Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN
Support GVRP
Support QinQ
